Mitra Krida Mandiri (MKM)

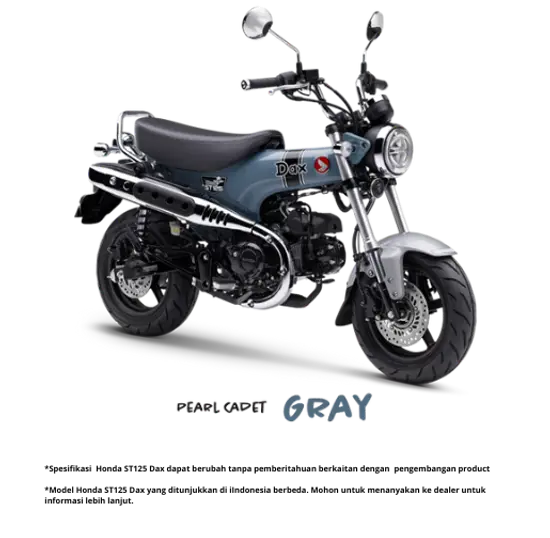

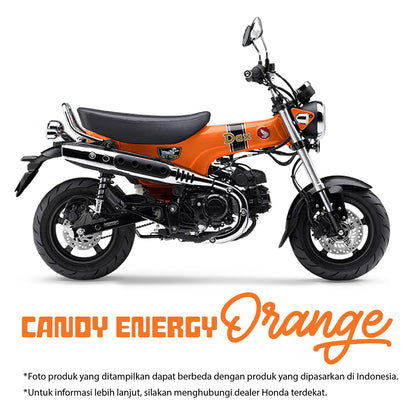

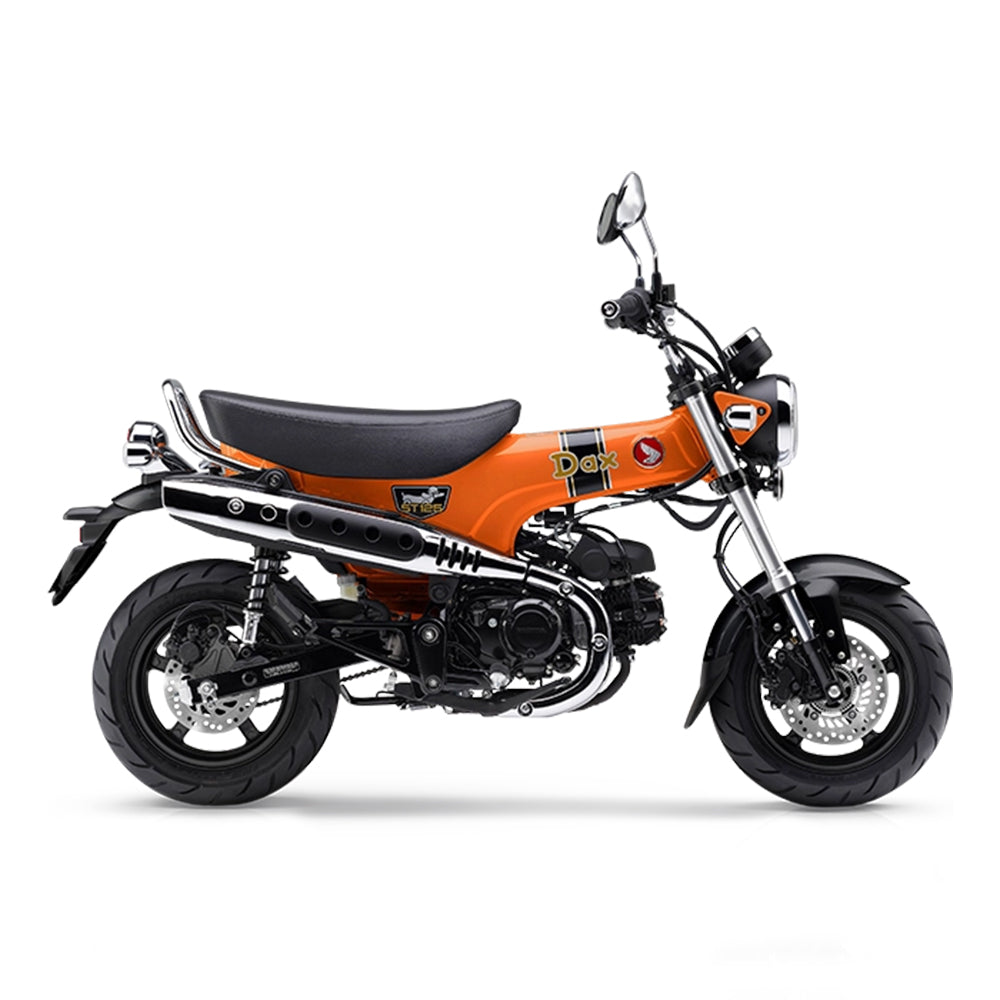

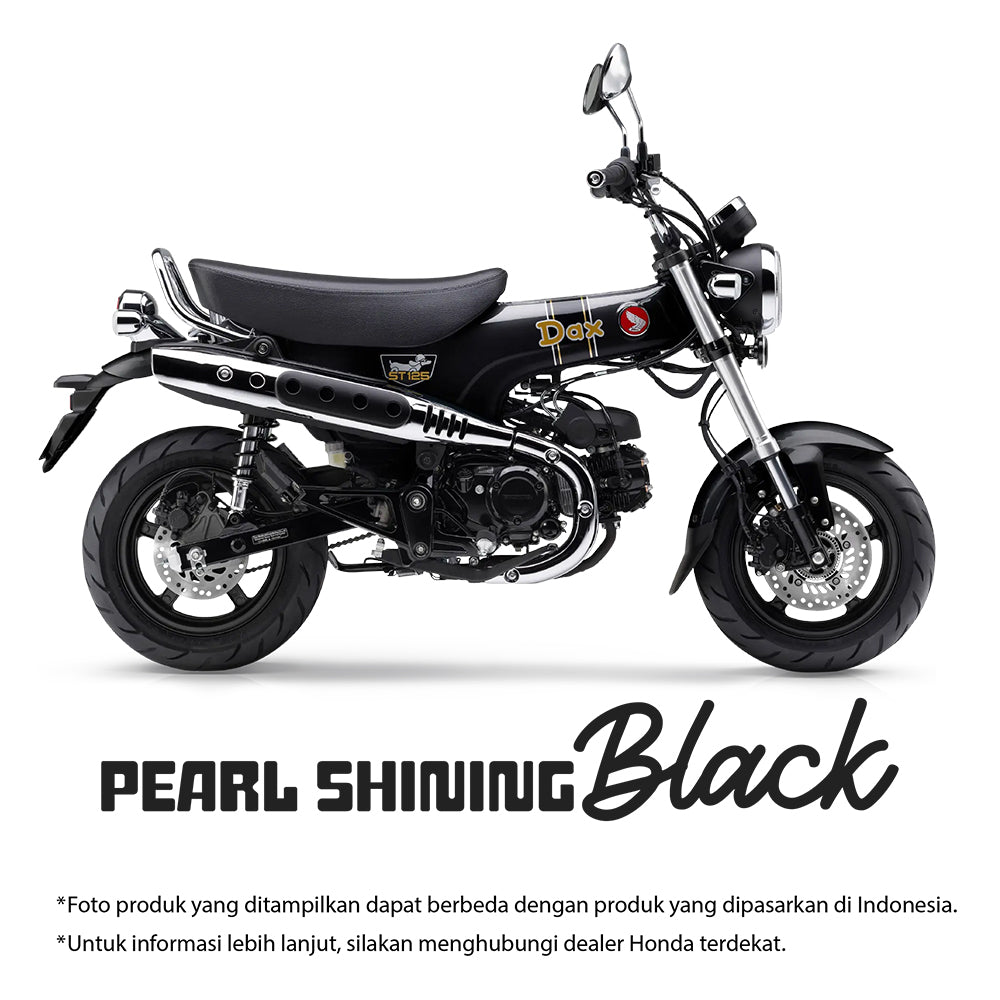

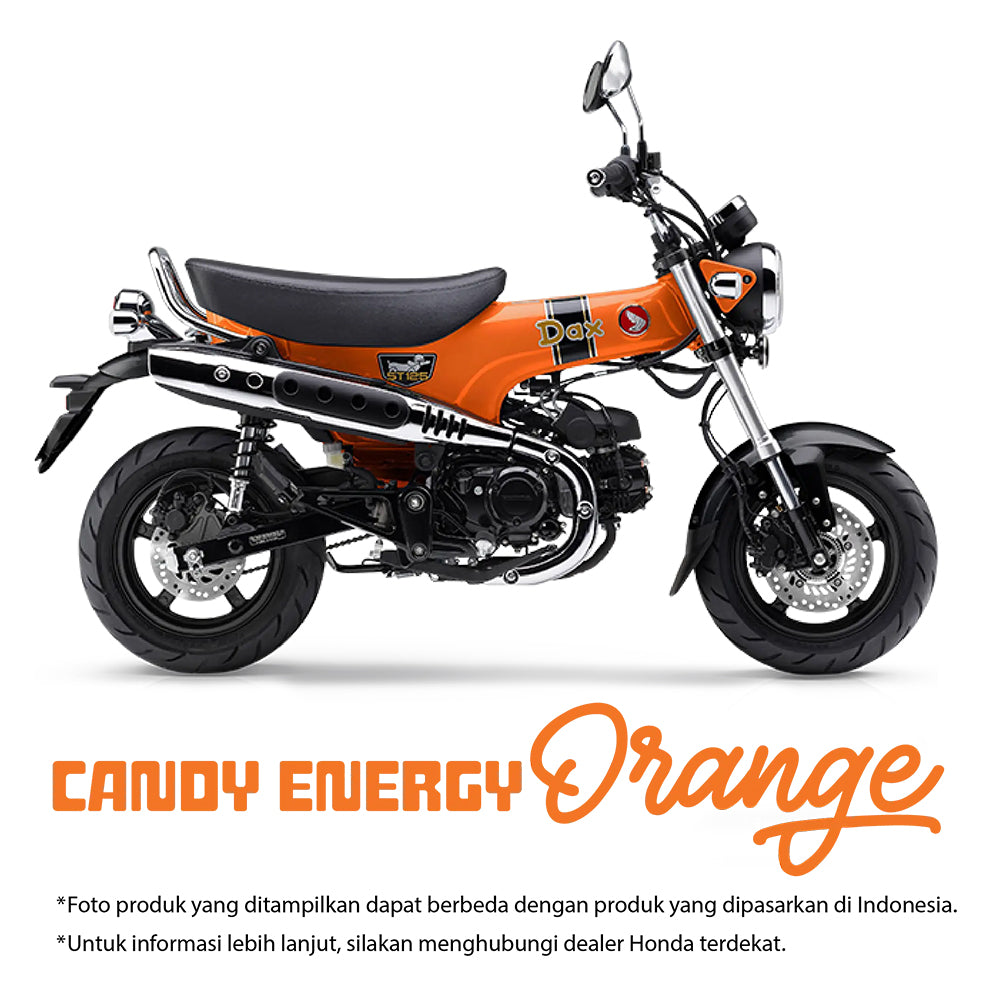

ST125 DAX

ST125 DAX

Regular price Rp 82.130.000
Regular price Sale price Rp 82.130.000
Sale Sold out
View full details

Motor Specifications

Machine

  • Machine Type4 Stroke, SOHC 2 Valves
  • Step Volume124cc
  • Fuel Supply SystemPGM-FI (Programmed Fuel Injection)
  • Diameter x Step50 x 63.1mm
  • Transmission TypeManual, 4 Speed
  • Compression Comparison10 : 1
  • Maximum Power6.6 kW / 7,000 rpm
  • Maximum Torque10.4 Nm / 5,000 rpm
  • Starter TypeElectric
  • Clutch TypeWet, Multiple Clutch
  • Cooling TypeWater-Cooled
  • Tooth Passing PatternsN - 4 - 3 - 2 - 1 - N

Frame & Legs

  • Frame TypeBack Bone Steel
  • Front Suspension TypeShowa, 31mm Inverted Telescopic Fork
  • Rear Suspension TypeShowa, Twin Shock
  • Front Tire Size120/70-12 51 L
  • Rear Tire Size130/70-12 56 L
  • Front Brake TypeHydraulic, Single 220 mm disc with ABS
  • Rear Brake TypeHydraulic, Single 190mm disc

Dimensions & Weight

  • Length x width x height1,761 x 762 x 1,019 mm
  • Seat Height778mm
  • Wheelbase1,198mm
  • Lowest Distance to Ground178mm
  • Empty Weight (Curb Weight)107 kg

Capacity & Electricity

  • Fuel Tank Capacity3.8 L
  • Lubricating Oil Capacity0.8 L (Exchange)
  • Battery Type12V-3.5 Ah
  • Ignition SystemNGK CPR7EA-9S
  • Spark Plug TypeFull Transisterized
  • HeadlightsLEDs
