Mitra Krida Mandiri (MKM)

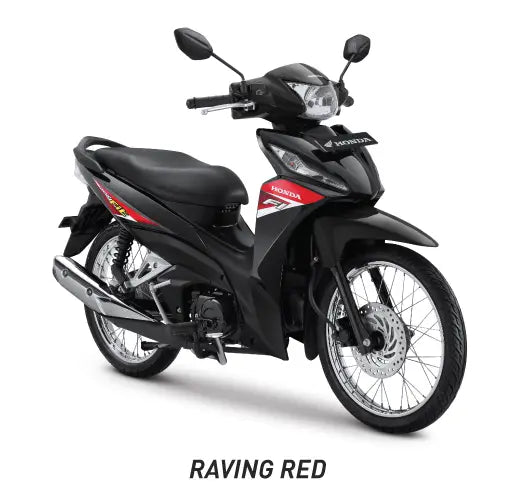

REVO

REVO

Regular price Rp 16.920.000
Regular price Sale price Rp 16.920.000
Sale Sold out
View full details

Motor Specifications

Machine

  • Machine TypeSOHC, 4 Stroke, SOHC, Single Cylinder
  • Machine Capacity109.17 cm3
  • Fuel Supply SystemInjection/PGM-FI (Programmed Fuel Injection)
  • Diameter X Step50 x 55.6mm
  • Transmission Type4 Speed
  • Compression Ratio9.3:1
  • Maximum Power6.56kW (8.91 PS) / 7,500 rpm
  • Maximum Torque8.76 Nm (0.86 kgf.m) / 6,000 rpm
  • Starter TypeFoot Starter & Electric Starter
  • Clutch TypeMultiplate Wet Clutch with Diaphragm Spring
  • Engine Cooling SystemAir conditioner
  • Gear Shift PatternN-1-2-3-4-N

Frame & Legs

  • Frame TypeBackbone
  • Front Suspension TypeTelescopic
  • Rear Suspension TypeSwing Arm with Double Suspension
  • Front Tire Size70/90 - 17 M/C 38
  • Rear Tire Size80/90 - 17 M/C 44P
  • Front BrakeHydraulic disc with single piston
  • Rear BrakeDrum

Dimensions & Weight

  • Length x width x height1,919 x 709 x 1,080 mm
  • Wheelbase1,227mm
  • Lowest Distance to Ground135mm
  • Curb Weight97.5 kg

Capacity & Electricity

  • Fuel Tank Capacity4 Litres
  • Lubricating Oil Capacity0.8 Liter at periodic replacement
  • Battery Type or AkiMF Battery 12V - 3Ah
  • Ignition SystemFull Transisterized
  • Spark Plug TypeNGK CPR6EA-9S or ND U20EPR9S
