Mitra Krida Mandiri (MKM)

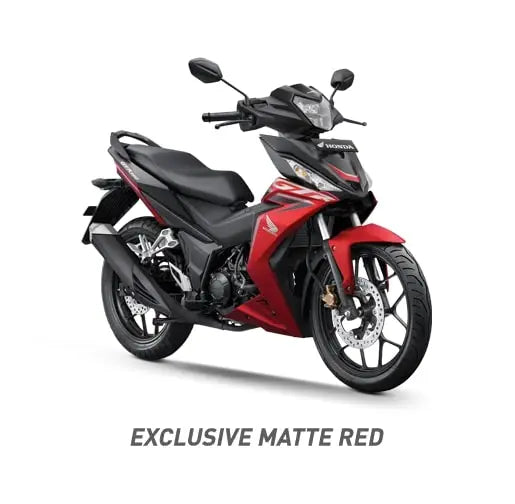

GTR 150

GTR 150

Regular price Rp 26.280.000
Regular price Sale price Rp 26.280.000
Sale Sold out
View full details

Motor Specifications

Machine

  • Machine Type4-Stroke, DOHC, 4 Valves
  • Machine Capacity149.16cc
  • Fuel Supply SystemPGM-FI
  • Diameter X Step57.3 x 57.8mm
  • Transmission TypeManual, 6 Speed
  • Compression Ratio11.3:1
  • Maximum Power12.0 kW (16.3 PS) / 9,000 rpm
  • Maximum Torque14.2 Nm (1.45 kgf.m) / 6,500 rpm
  • Starter TypeElectric & Kick Starter
  • Clutch TypeWet Multiplate with Coil Springs
  • Engine Cooling SystemLiquid Cooled with Auto Fan
  • Gear Shift Pattern1-N-2-3-4-5-6

Frame & Legs

  • Frame TypeTwin Tube Steel
  • Front Suspension TypeTelescopic
  • Rear Suspension TypeSwing Arm with Single Suspension
  • Front Tire Size90/80-17 46P (Tubeless)
  • Rear Tire Size120/70-17 58P (Tubeless)
  • Front BrakeHydraulic Disc
  • Rear BrakeHydraulic Disc

Dimensions & Weight

  • Length x width x height2,025 x 705 x 1,105 mm
  • Seat Height780mm
  • Wheelbase1,284mm
  • Lowest Distance to Ground150mm
  • Curb Weight119 kg
  • Turning radius1,900mm

Capacity & Electricity

  • Fuel Tank Capacity4.5 Litres
  • Lubricating Oil Capacity1.1 Liter (Periodic Replacement)
  • Battery Type or AkiMF 12V - 5.0 Ah
  • Ignition SystemFull - Transistor
  • Spark Plug TypeNGK MR9C-9N or ND U27EPR-N9
