Mitra Krida Mandiri (MKM)

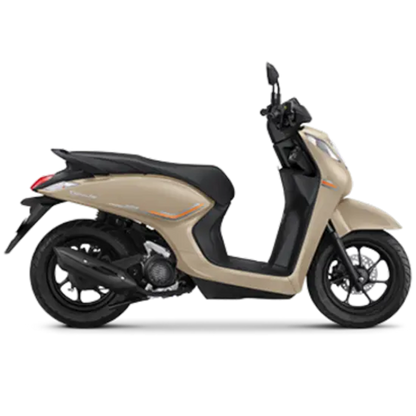

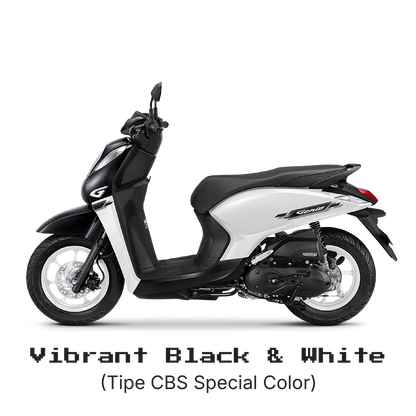

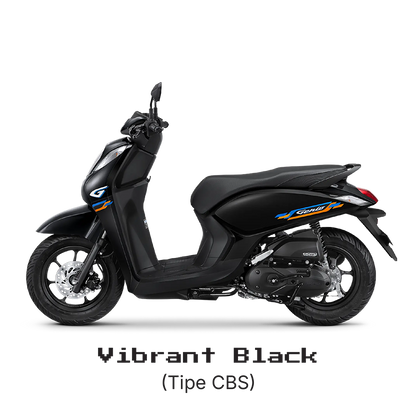

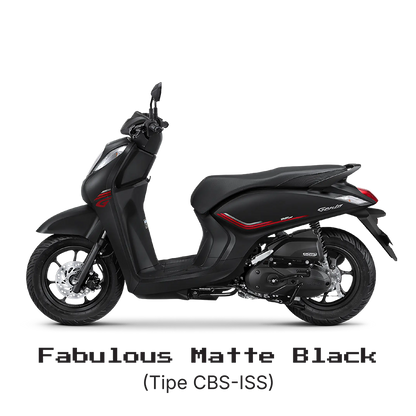

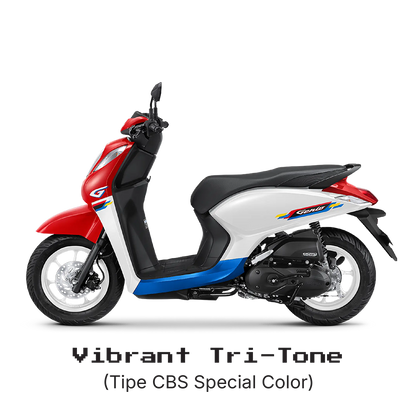

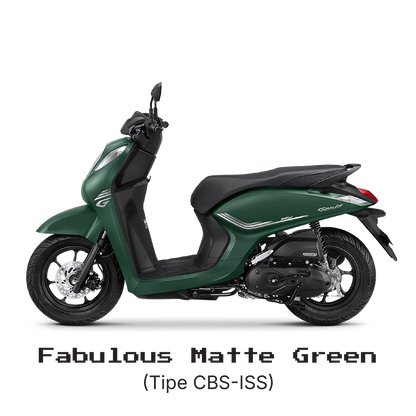

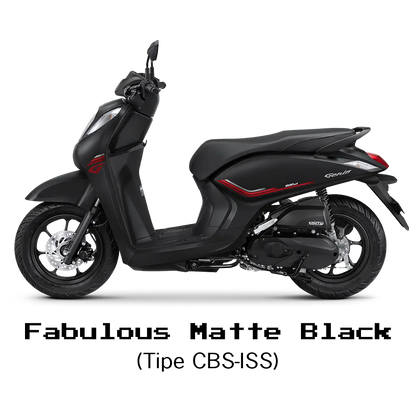

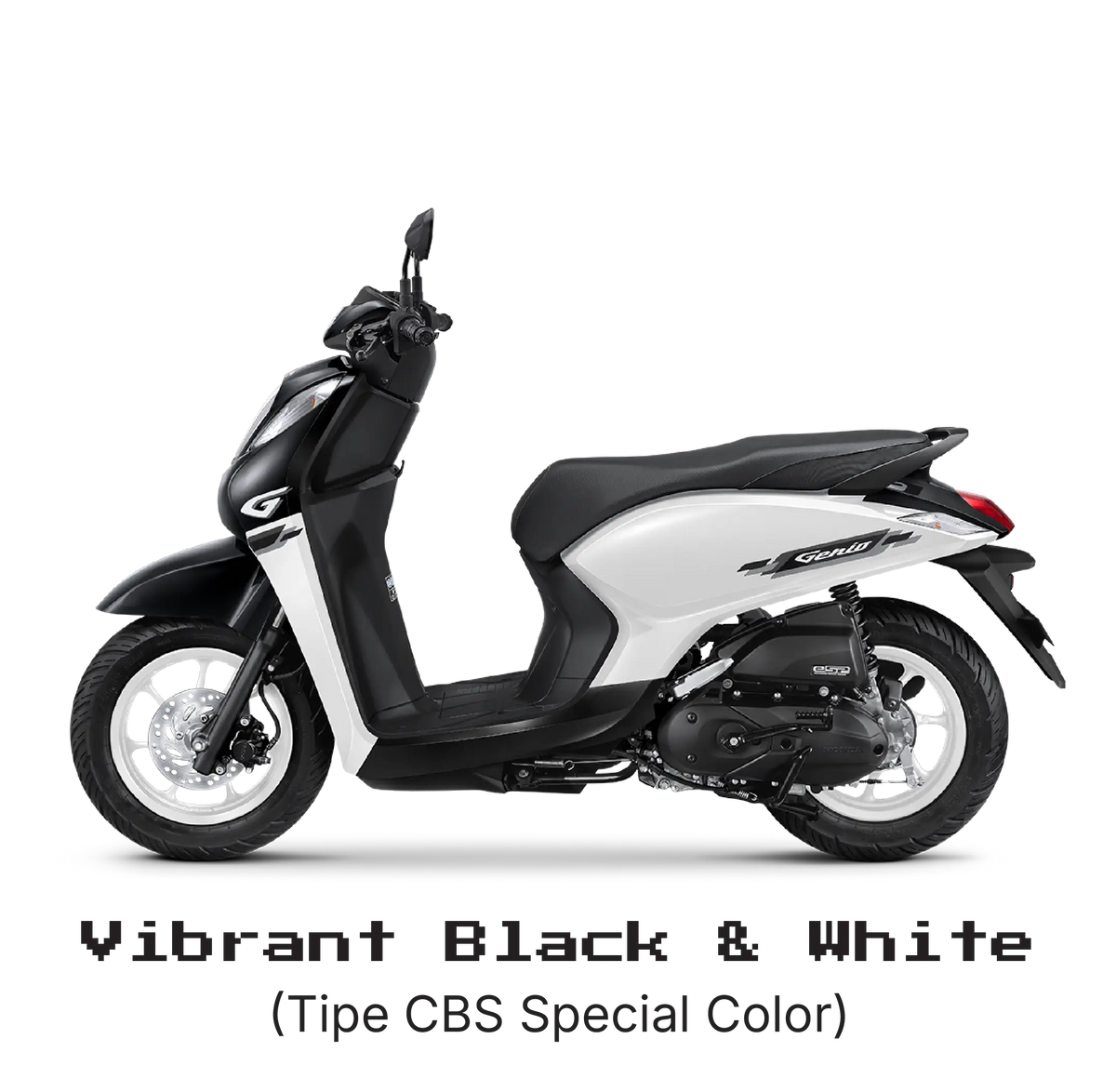

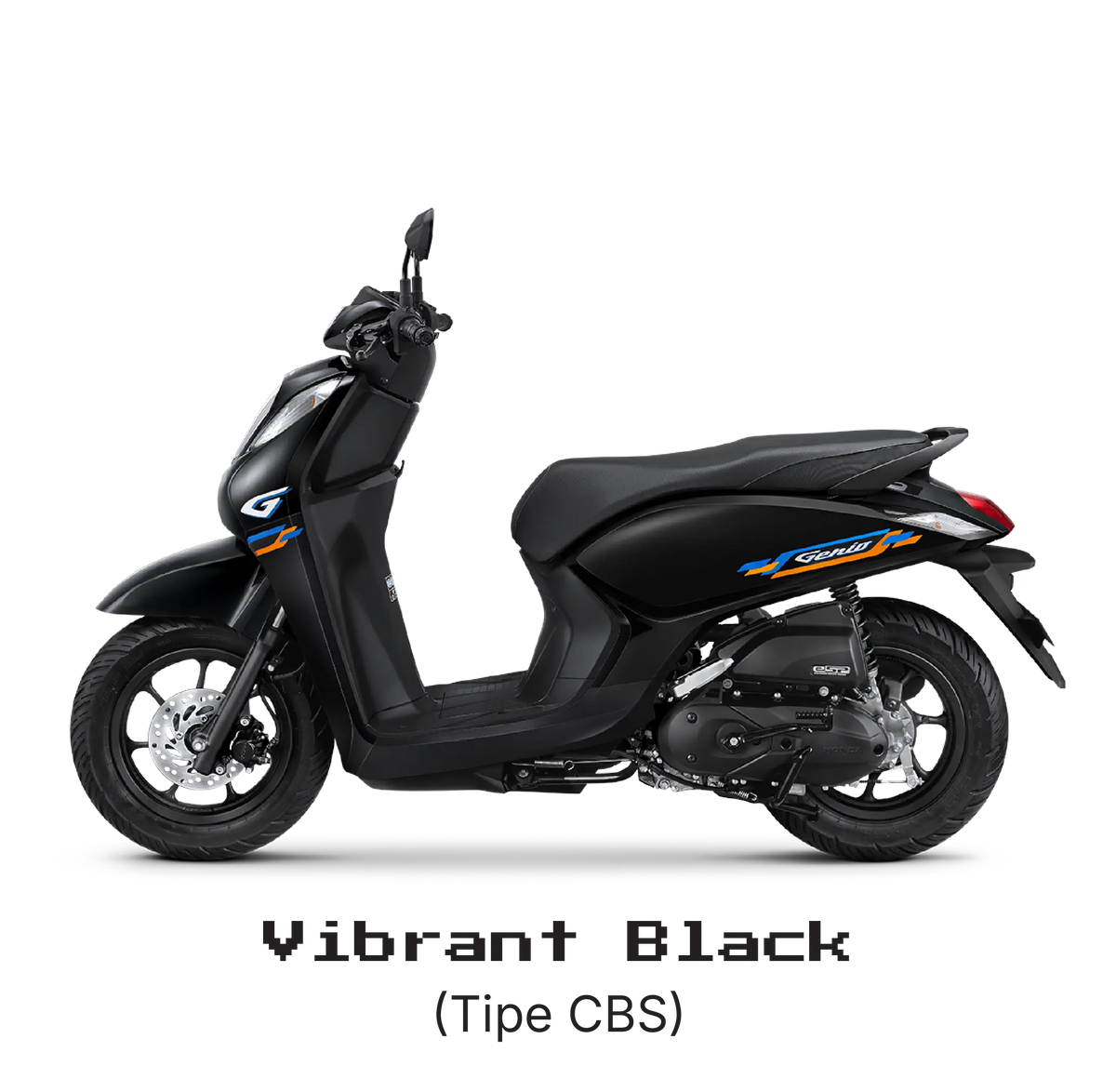

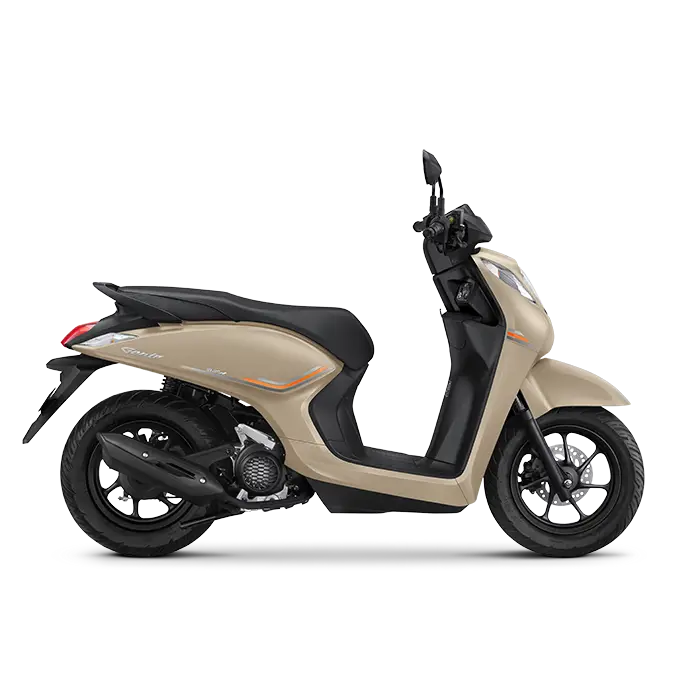

GENIO

GENIO

Regular price Rp 20.400.000
Regular price Sale price Rp 20.400.000
Sale Sold out
View full details

Motor Specifications

Machine

  • Machine Type4 – Step, SOHC, eSP
  • Fuel Supply SystemPGM – FI (Programmed Fuel Injection)
  • Diameter X Step47.0 x 63.1mm
  • Transmission TypeAutomatic, V-Matic
  • Compression Ratio10.0 : 1
  • Maximum Power6.6 kW ( 9.0 PS ) / 7,500 rpm
  • Maximum Torque9.3 Nm (0.95 kgf.m) / 5,500 rpm
  • Starter TypeElectric and Kick Starter
  • Clutch TypeAutomatic Centrifugal Clutch Dry Type

Frame & Legs

  • Frame TypeUnderbone – eSAF (Enhanced Smart Architecture Frame)
  • Front Suspension TypeTelescopic
  • Rear Suspension TypeSwing Arm with Single Suspension
  • Front Tire Size100/90 – 12 59J (Tubeless)
  • Rear Tire Size110/90 – 12 64J (Tubeless)
  • Front BrakeSingle Piston Hydraulic Disc
  • Rear BrakeDrum
  • Braking SystemCombi Brake System

Dimensions & Weight

  • Length x width x height1,862 x 694 x 1,061 mm
  • Seat Height744mm
  • Wheelbase1,251mm
  • Lowest Distance to Ground150mm
  • Curb Weight92 kg (CBS Type) 93kg (CBS Type - ISS)

Capacity & Electricity

  • Fuel Tank Capacity4.2 L
  • Lubricating Oil Capacity0.65 L (Periodic Replacement)
  • Battery Type or AkiMF 12 V – 3Ah (CBS Type), MF 12 V – 5 Ah (CBS Type – ISS)
  • Ignition SystemFull Transisterized
  • Spark Plug TypeNGK MR9C-9N
