Mitra Krida Mandiri (MKM)

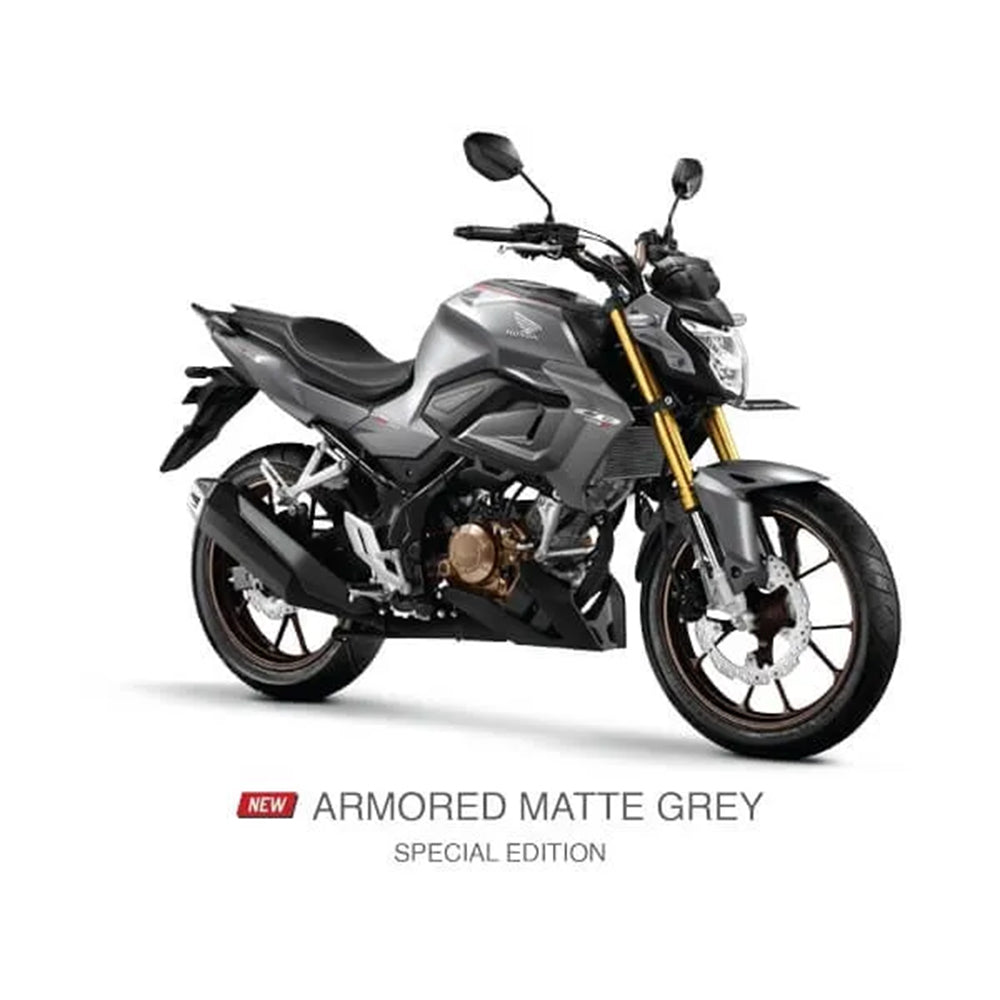

CB150R Streetfire

CB150R Streetfire

Regular price Rp 31.740.000
Regular price Sale price Rp 31.740.000
Sale Sold out
View full details

Motor Specifications

Machine

  • Machine Type4 Stroke, DOHC 4 Valves
  • Machine Capacity149.16cc
  • Fuel Supply SystemPGM-FI (Programmed Fuel Injection)
  • Diameter X Step57.3 x 57.843 mm
  • Transmission TypeManual, 6 Speed
  • Compression Comparison11.3 : 1
  • Maximum Power12.4 kW (16.9 PS) / 9,000 rpm
  • Maximum Torque14.5 Nm (1.48 kgf.m) / 7,000 rpm
  • Starter TypeElectric
  • Clutch TypeMultiple Wet Clutch with Coil Spring
  • Cooling SystemLiquid Cooled
  • Gear Shift Pattern1 - N - 2 - 3 - 4 - 5 - 6
  • Lubricating Oil TypeWet

Frame & Legs

  • Frame TypeDiamond (Truss) Frame
  • Front Suspension TypeShowa 37mm Inverted Telescopic
  • Rear Suspension TypeSwing Arm with single suspension (Pro-Link System)
  • Front Tire Size100/80-17M/C 52P, Tubeless
  • Rear Tire Size130/70-17M/C 62P, Tubeless
  • Front Brake TypeWavy Disc Brake
  • Rear Brake TypeWavy Disc Brake

Dimensions & Weight

  • Length x width x height2,024 x 796 x 1,083 mm
  • Seat Height795mm
  • Wheelbase1,298mm
  • Lowest Distance to Ground164mm
  • Empty Weight (Curb Weight)134 (Standard) & 135 kg (Special Edition)

Capacity & Electricity

  • Fuel Tank Capacity12 Litres
  • Lubricating Oil Capacity1.1 Liter (Periodic Replacement)
  • Battery TypeMF-Wet 12V-5Ah
  • Ignition SystemFull Transisterized
  • Spark Plug TypeNGK MR9C-9N or DENSO U27EPR-N9
