Mitra Krida Mandiri (MKM)

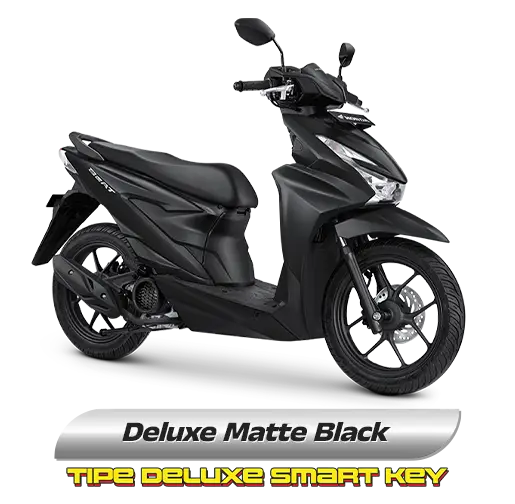

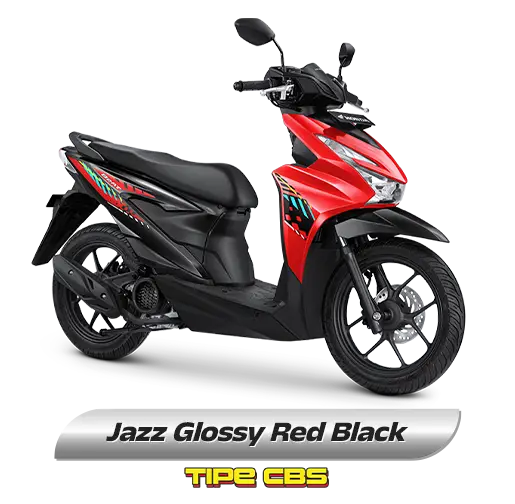

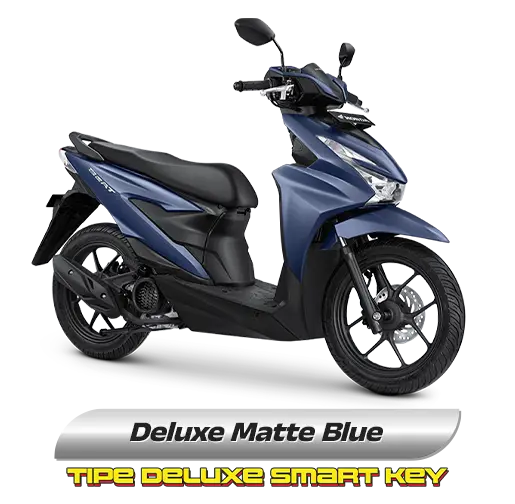

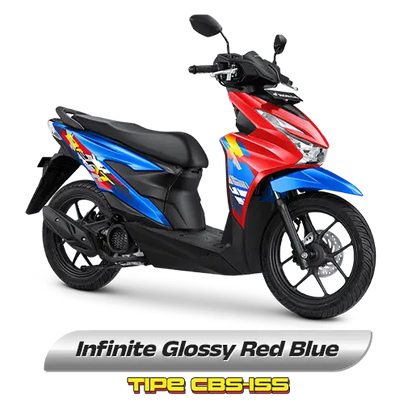

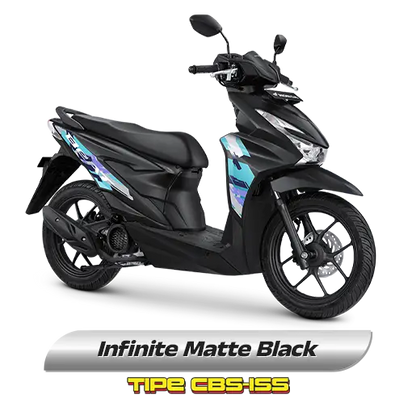

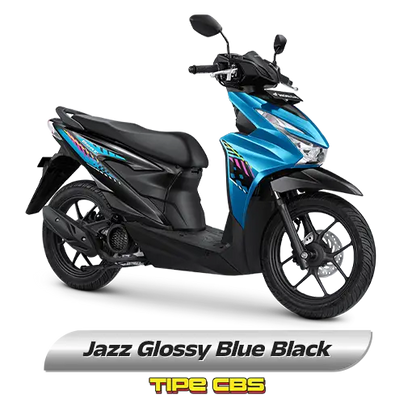

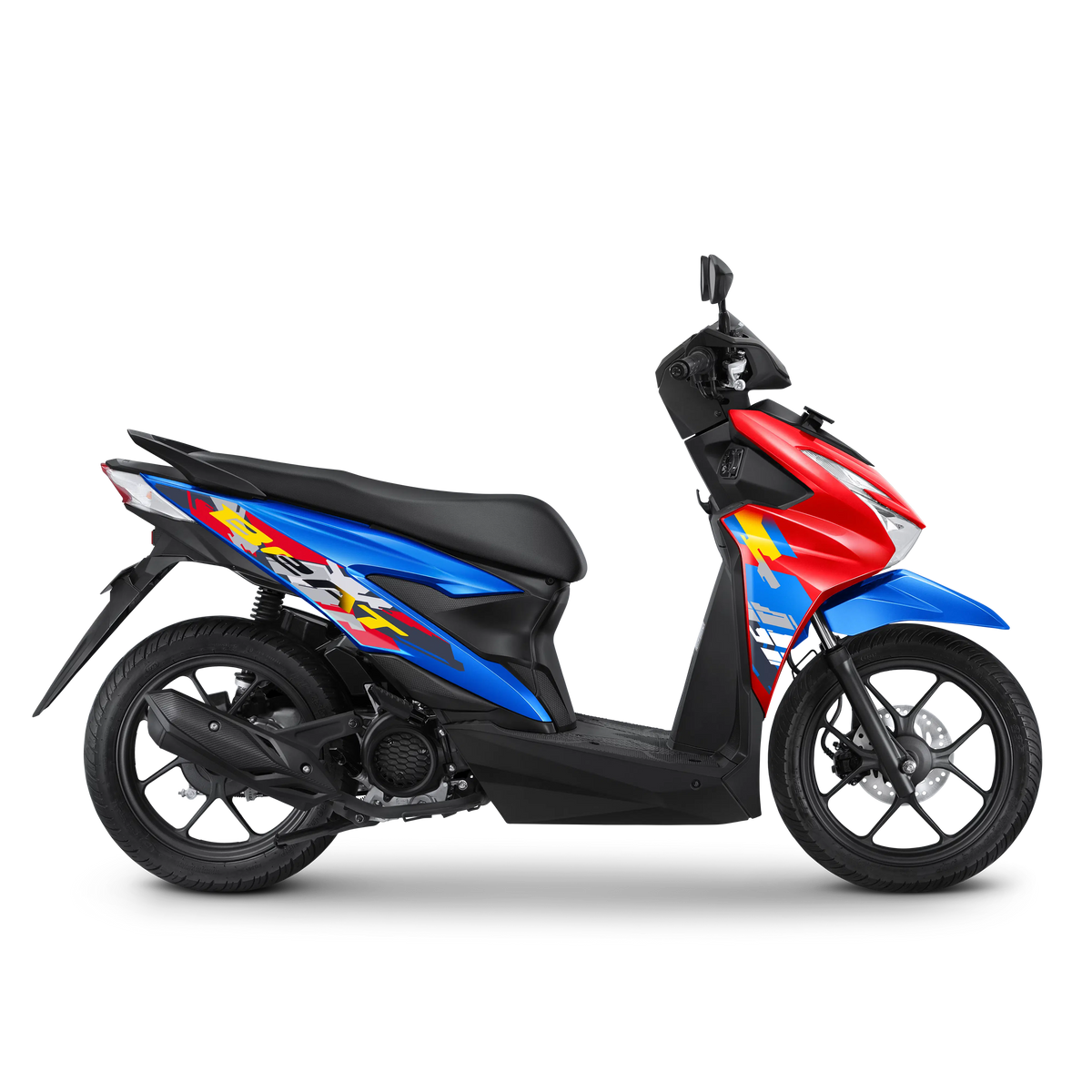

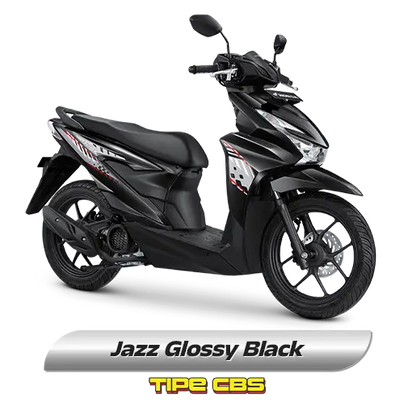

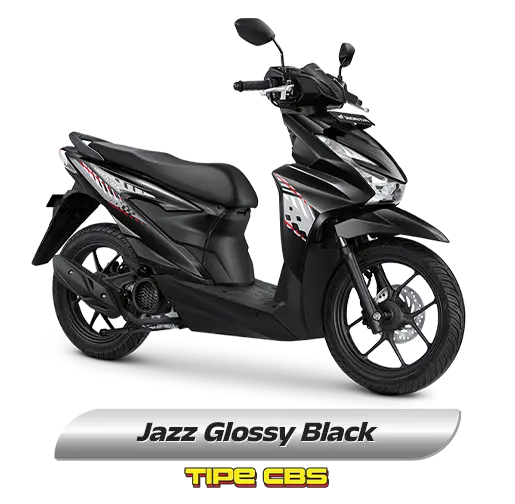

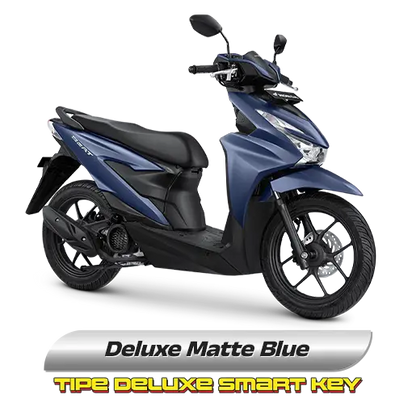

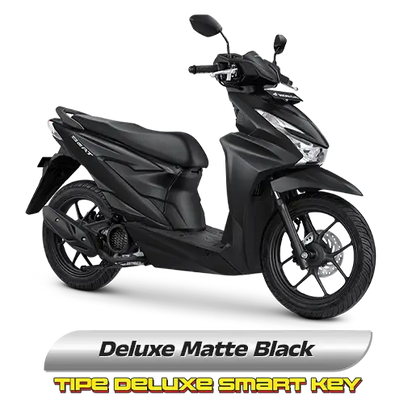

SPORTY BEAT

SPORTY BEAT

Regular price Rp 19.590.000
Regular price Sale price Rp 19.590.000
Sale Sold out

Honda BeAT

View full details

Motor Specifications

Machine

  • Machine Type4 – Step, SOHC, eSP
  • Step Volume109.5cc
  • Fuel Supply SystemInjection (PGM-FI)
  • Diameter X Step47.0 x 63.1mm
  • Transmission TypeAutomatic, V-Matic
  • Compression Ratio10.0 : 1
  • Maximum Power6.6 kW (9.0 PS)/7,500 rpm
  • Maximum Torque9.3 Nm (0.95 kgf.m)/ 5,500 rpm
  • Starter TypeElectric and Kick Starter
  • Clutch TypeAutomatic, Centrifugal, Dry Type

Frame & Legs

  • Frame TypeBackbone – eSAF (enhance Smart Architecture Frame)
  • Front Suspension TypeTelescopic
  • Rear Suspension TypeSwing Arm with Single Shock Absorber
  • Front Tire Size80/90 – 14 M/C – Tubeless
  • Rear Tire Size90/90 – 14 M/C – Tubeless
  • Front BrakeHydraulic Disc with Single Piston
  • Rear BrakeDrum
  • Braking SystemCombi Brake System

Dimensions & Weight

  • Length x width x height1,877 x 669 x 1,074 mm (BeAT)
  • Seat Height740mm
  • Wheelbase1,256mm
  • Lowest Distance to Ground147mm
  • Curb Weight89 Kg

Capacity & Electricity

  • Fuel Tank Capacity4.2 Litres
  • Lubricating Oil Capacity0.65 Liter (Periodic Replacement)
  • Battery Type or AkiBeAT MF 12V-3Ah (CBS Type) MF 12V-5Ah (CBS-ISS Type)
  • Ignition SystemFull Transisterized, Battery
  • Spark Plug TypeNGK MR9C-9N/DENSO U27EPR9-N9
